Column-level lineage

Column-level lineage (CLL) gives you insight into the provenance of your data products at a more granular level. For each column in a resource (model, source, or snapshot) in a dbt project, dbt provides end-to-end lineage for the data in that column given how it's used.

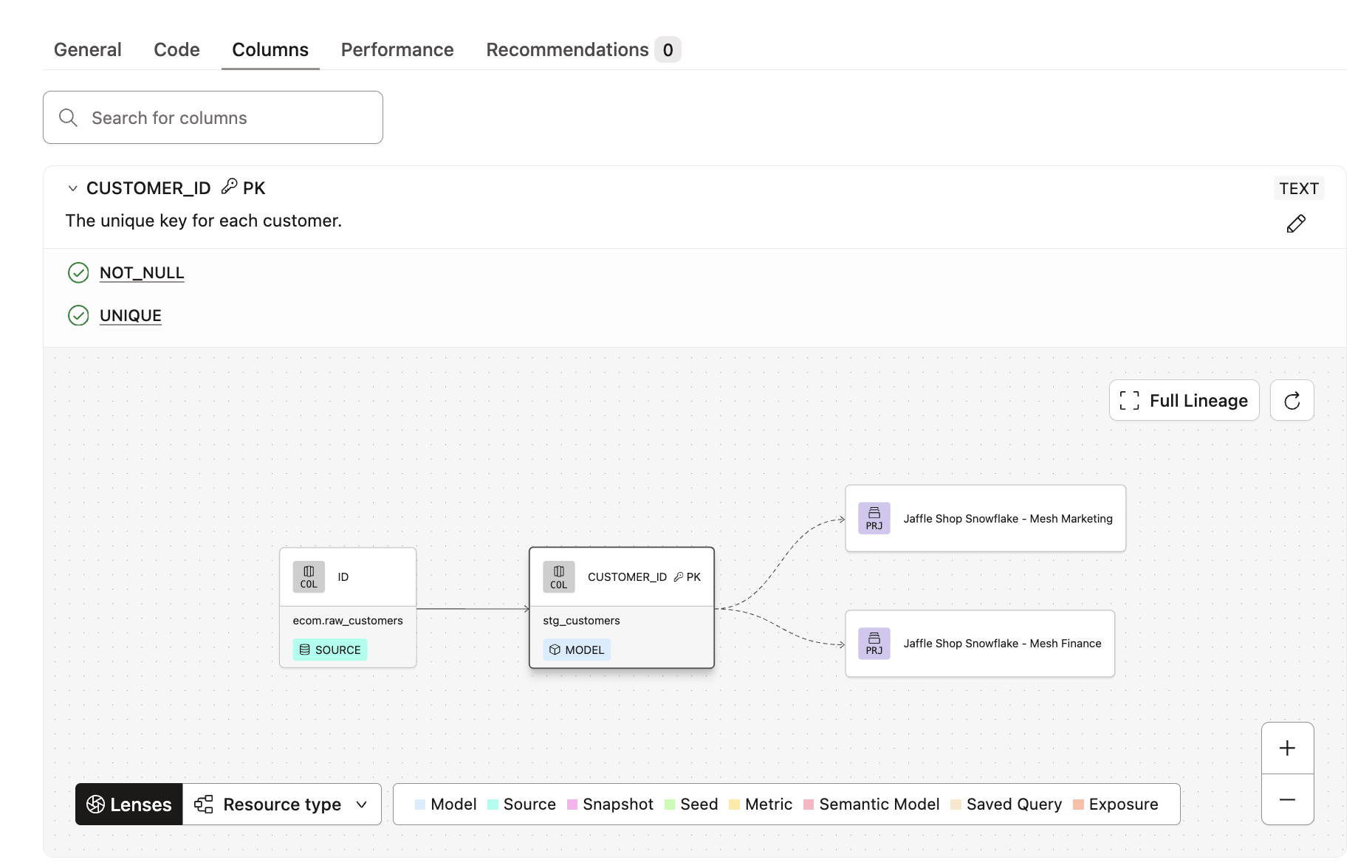

Overview of column level lineageOverview of column level lineage

Prerequisites​

You can use CLL in two places:

On-demand learning

If you enjoy video courses, check out our dbt Catalog on-demand course and learn how to best explore your dbt project(s)!

Access the column-level lineage in Catalog​

There is no additional setup required for CLL in Catalog if your account is an Enterprise or Enterprise+ plan with Catalog access. You can access CLL from the column card in the Columns tab in the Catalog resource details page for a model, source, or snapshot.

dbt updates the lineage in Catalog after each run that's executed in the production or staging environment. At least one job in the production or staging environment must run dbt docs generate. Refer to Generating metadata for more details.

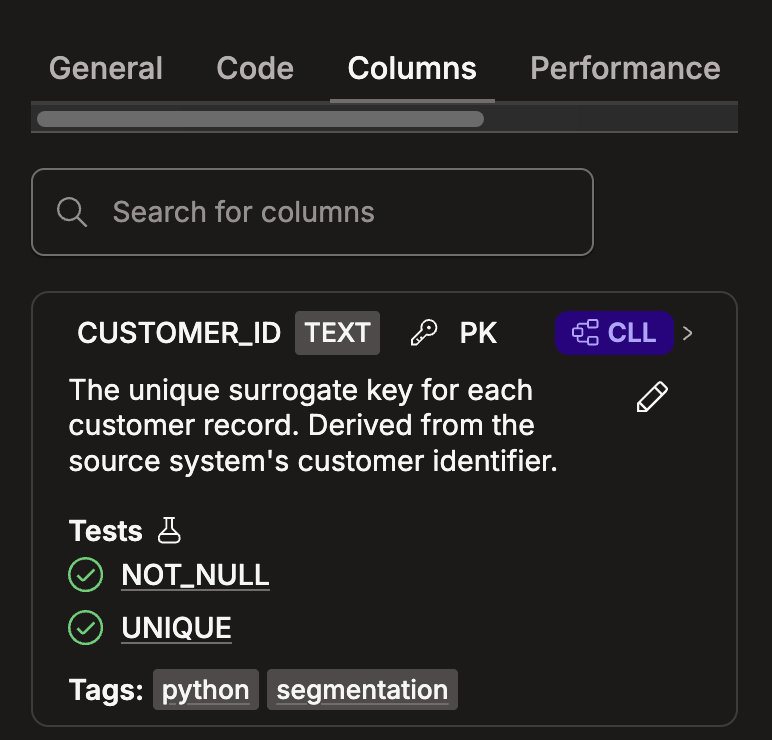

Example of the Columns tab and where to open the CLLExample of the Columns tab and where to open the CLL

Access column-level lineage locally​

When you develop with dbt v2, you can see column-level lineage in these ways:

  • dbt VS Code extension: Right-click a filename or a model's SQL, then select dbt: View Lineage → Show column lineage. Refer to Rich lineage in context for the full workflow.
  • dbt Docs v2: Run dbt compile --generate-info-schema --static-analysis strict, then dbt docs generate --no-compile. dbt docs generate has no --static-analysis flag, so the strict compile must come first or the site won't include column lineage. Refer to dbt Docs v2.
  • Command line or artifact: Run dbt compile --generate-info-schema --static-analysis strict, then dbt show --info column_lineage. You can find these files in target/info_schema/ and read the dbt.column_lineage Parquet directly.

Column evolution lens​

You can use the column evolution lineage lens to determine when a column is transformed vs. reused (passthrough or rename). The lens helps you distinguish when and how a column is actually changed as it flows through your dbt lineage, informing debugging workflows in particular.

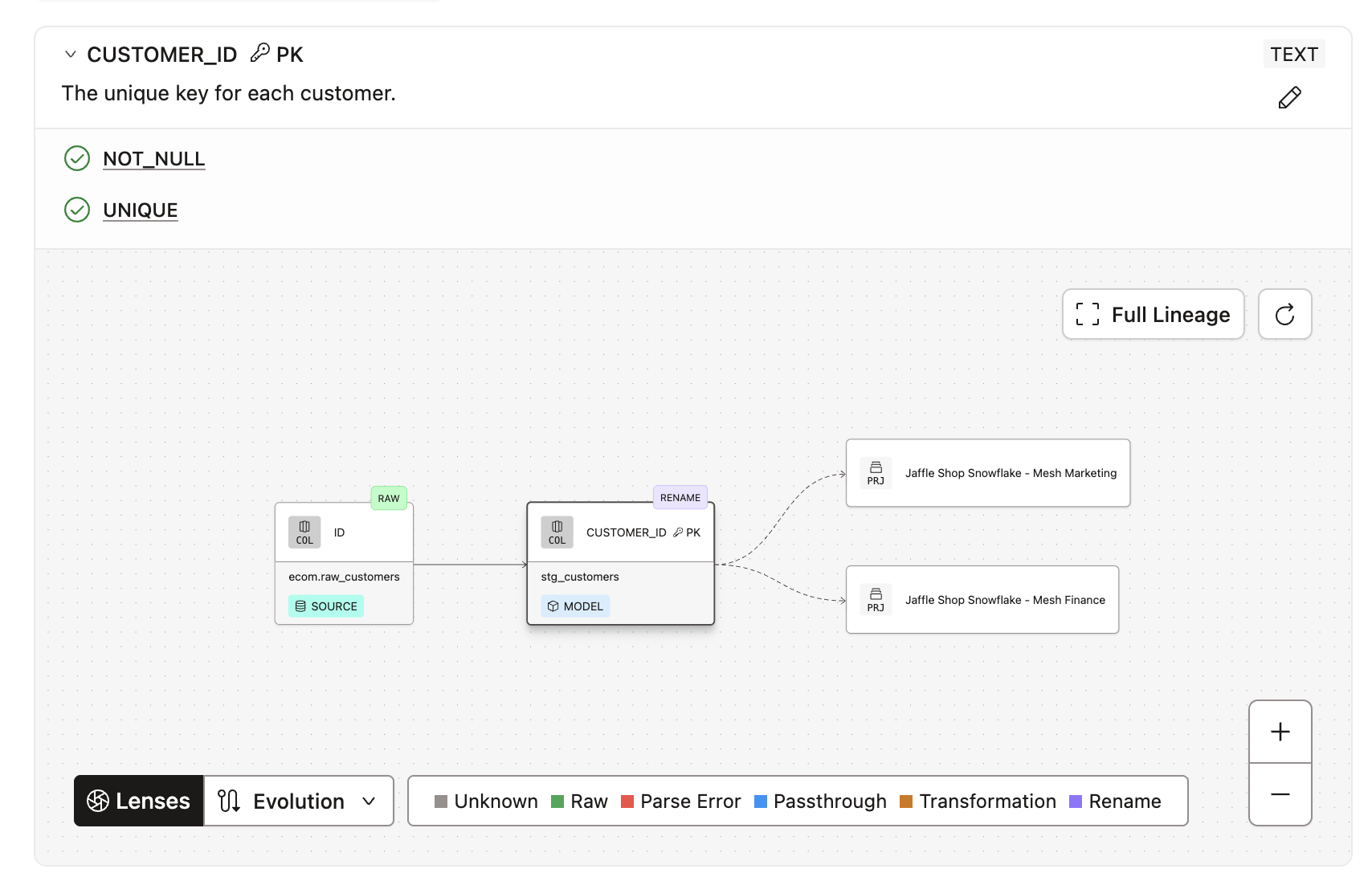

Example of the Column evolution lensExample of the Column evolution lens

Inherited column descriptions​

A reused column, labeled as Passthrough or Rename in the lineage, automatically inherits its description from the source and upstream model columns. The inheritance goes as far back as possible. As long as the column isn't transformed, you don't need to manually define the description; it'll automatically propagate downstream.

Passthrough and rename columns are clearly labeled and color-coded in the lineage.

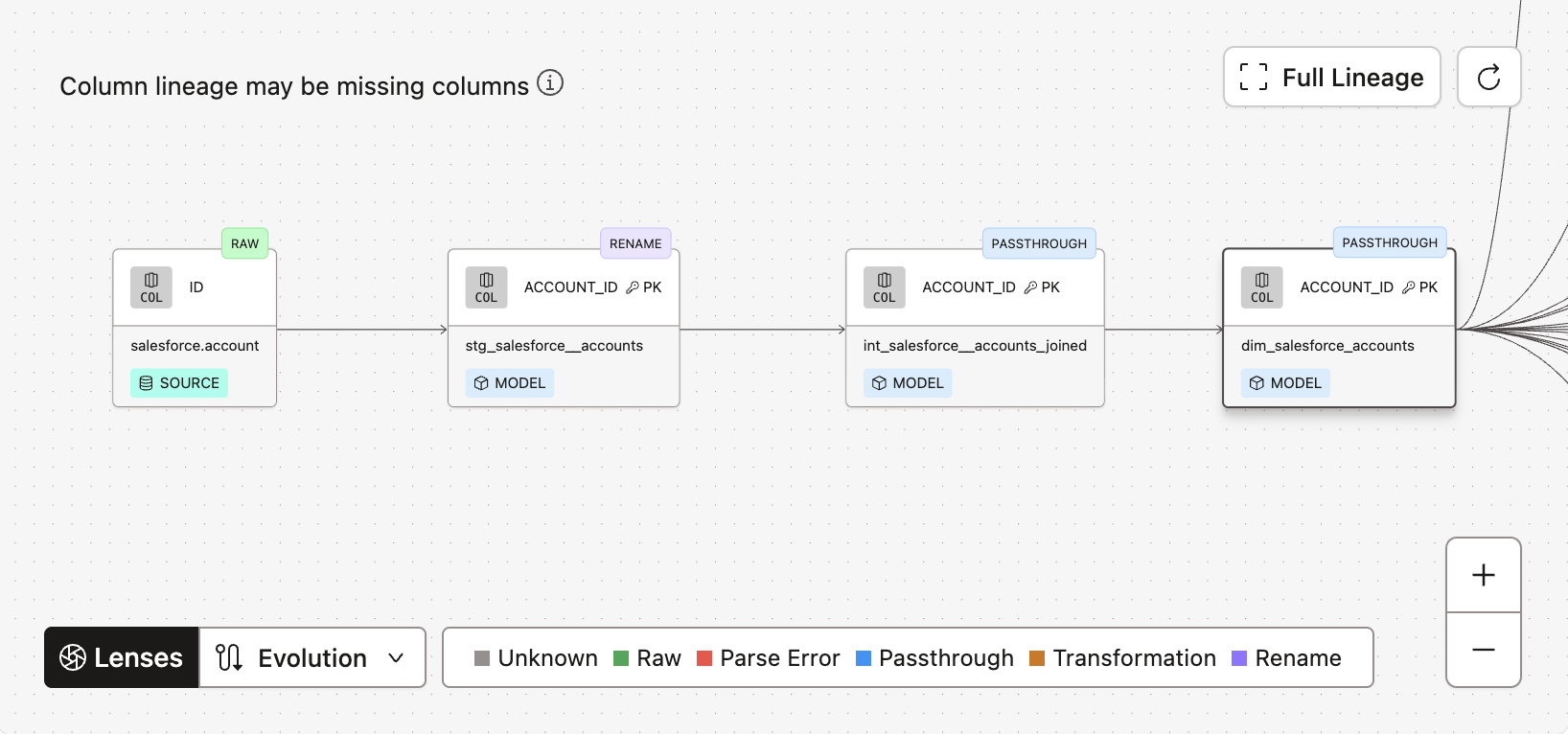

In the following dim_salesforce_accounts model example (located at the end of the lineage), the description for a column inherited from the stg_salesforce__accounts model (located second to the left) indicates its origin. This helps developers quickly identify the original source of the column, making it easier to know where to make documentation changes.

Example of lineage with propagated and inherited column descriptions.Example of lineage with propagated and inherited column descriptions.

Column-level lineage use cases​

Learn more about why and how you can use CLL in the following sections.

Root cause analysis​

When there is an unexpected breakage in a data pipeline, column-level lineage can be a valuable tool to understand the exact point where the error occurred in the pipeline. For example, a failing data test on a particular column in your dbt model might've stemmed from an untested column upstream. Using CLL can help quickly identify and fix breakages when they happen.

Impact analysis​

During development, analytics engineers can use column-level lineage to understand the full scope of the impact of their proposed changes. This knowledge empowers them to create higher-quality pull requests that require fewer edits, as they can anticipate and preempt issues that would've been unchecked without column-level insights.

Collaboration and efficiency​

When exploring your data products, navigating column lineage allows analytics engineers and data analysts to more easily navigate and understand the origin and usage of their data, enabling them to make better decisions with higher confidence.

Caveats in Catalog​

Refer to the following CLL caveats or limitations as you navigate Catalog.

Column usage​

Column-level lineage reflects the lineage from select statements in your models' SQL code. It doesn't reflect other usage like joins and filters.

SQL parsing​

Column-level lineage relies on SQL parsing. Errors can occur when parsing fails or a column's origin is unknown (like with JSON unpacking, lateral joins, and so on). In these cases, lineage may be incomplete and dbt will provide a warning about it in the column lineage.

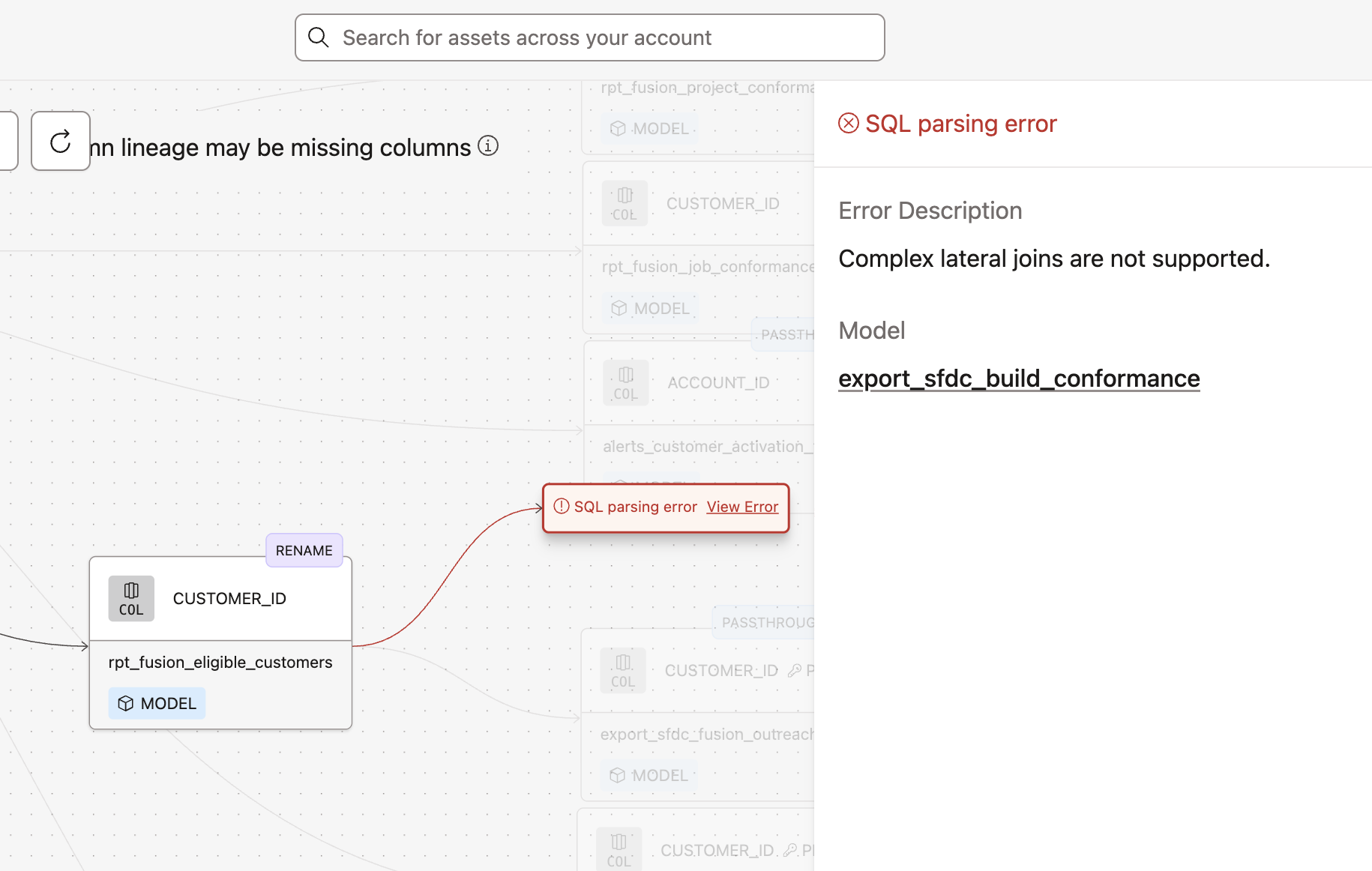

Example of warning in the full lineage graphExample of warning in the full lineage graph

To review the error details:

  1. Click the Expand icon in the upper right corner to open the column's lineage graph
  2. Select the node to open the column’s details panel

Possible error cases are:

  • Parsing error — Error occurs when the SQL is ambiguous or too complex for parsing. An example of ambiguous parsing scenarios are complex lateral joins.
  • Python error — Error occurs when a Python model is used within the lineage. Due to the nature of Python models, it's not possible to parse and determine the lineage.
  • Unknown error — Error occurs when the lineage can't be determined for an unknown reason. An example of this would be if a dbt best practice is not being followed, like using hardcoded table names instead of ref statements.
